Chongqing Cummins Engine Co., Ltd. (hereinafter referred to as “Chongqing Cummins” or “CCEC“) was established in 1995, located in Chongqing City. It’s a modern manufacturer 50:50 Joint Venture shared by Chongqing Machinery CO. LTD and Cummins USA. The company mainly produces N, K, M series Cummins construction engine, diesel pump engine, marine engine, generators engine, KTA38-M850 marine engine is one of the engine family members, the specifications of Cummins KTA38-M850 marine engine as follows:

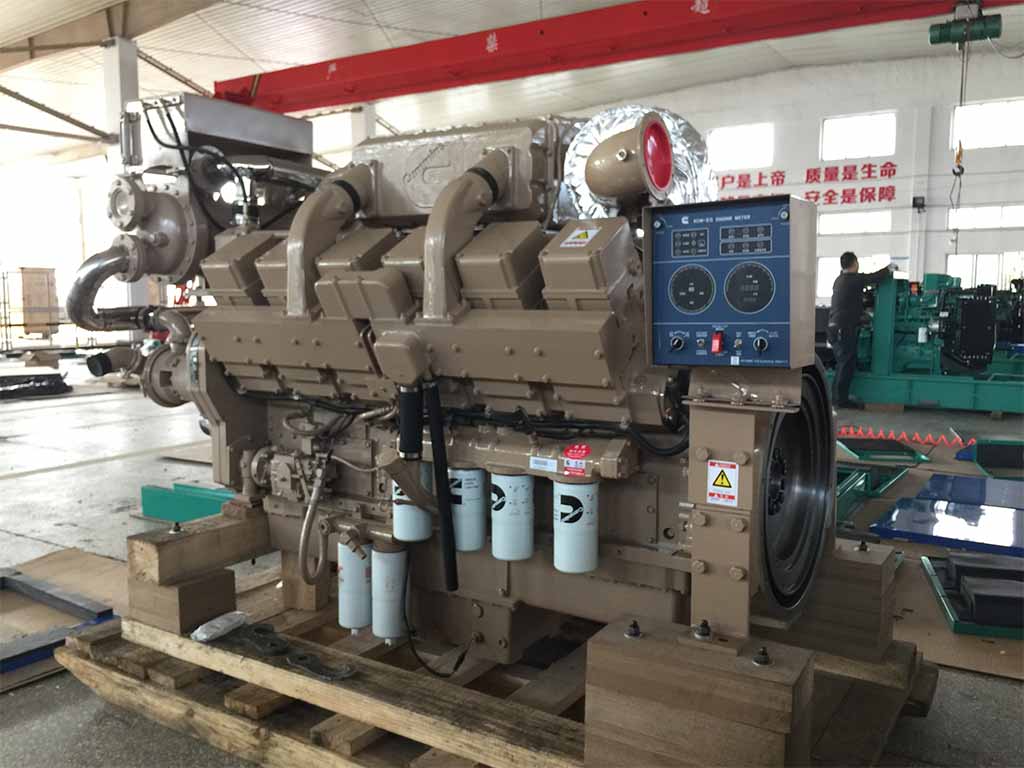

Cummins KTA38-M850 Diesel Engine for Marine
|
|
Engine Model | KTA38-M850 |
Rated Power | 634kW |
Rated Speed | 1800RPM |
Engine Type | 12 Cylinders, V Type |
Bore*Stroke(mm) | 159mm*159mm |
Displacement | 37.8 L |
Compression Ratio | 13.9:1 |
Fuel Consumption | 162L/hr |
Aspiration Type | Turbocharged & Aftercooled |
Cooling Method | Water Cooled |
Start Type | 24V, Electric Start |
Fuel System | Direct Injection Pump |
Governor Method | Mechanical Governor |
Packing Weight | 4700KG |
Dimension | 2700mm*1550mm*2200mm |
Remarks:
(1) If you need the KTA38-M850 marine engine power pack with the marine gearbox, please further contact our sales.
(2) We can provide the KTA38-M850 complete marine engine, as well as the KTA38-M850 genuine Cummins engine parts.
(3) Cummins KT38 Series Marine Engine Model: KTA38-M750, KT38-M780, KTA38-M800, KTA38-M850, KTA38-M900, KTA38-M1050, KTA38-M1200, KTA38-M1300, KTA38-M1350.
