Chongqing Cummins Engine Co., Ltd. (hereinafter referred to as “Chongqing Cummins” or “CCEC“) was established in 1995, located in Chongqing City. It’s a modern manufacturer 50:50 Joint Venture shared by Chongqing Machinery CO. LTD and Cummins USA. The company mainly produces N, K, M series Cummins construction engine, diesel pump engine, marine engine, generators engine, KTA50-M1600 marine engine is one of the engine family members, the specifications of Cummins KTA50-M1600 marine engine as follows:

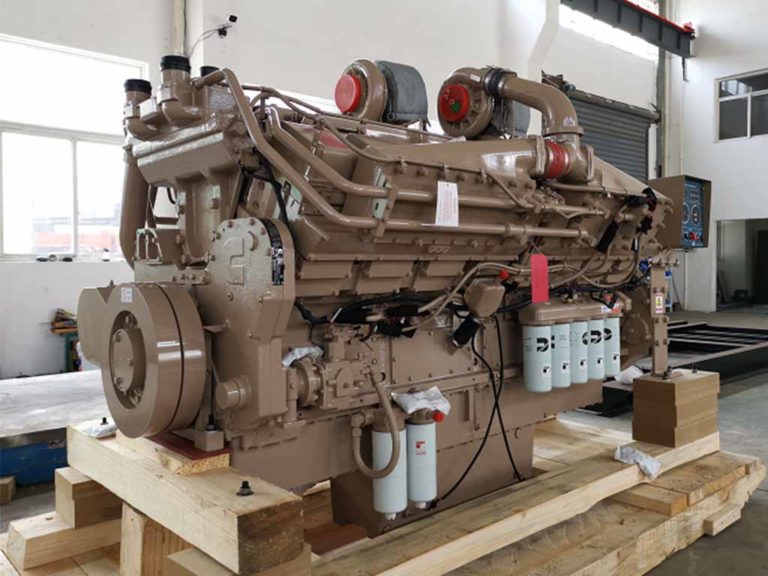

Cummins KTA50-M1600 Diesel Engine for Marine
|
|
Engine Model | KTA50-M1600 |
Rated Power | 1193kW |
Rated Speed | 1800RPM |
Engine Type | 16 Cylinders, V Type |
Bore*Stroke(mm) | 159mm*159mm |
Displacement | 50.3 L |
Compression Ratio | 13.9:1 |
Fuel Consumption | 260 L/hr |
Aspiration Type | Turbocharged & Aftercooled |
Cooling Method | Water Cooled |
Start Type | 24V, Electric Start |
Fuel System | Direct Injection Pump |
Governor Method | Mechanical Governor |
Packing Weight | 5800KG |
Dimension | 3000mm*1800mm*2500mm |
Remarks:
(1) If you need the KTA50-M1600 marine engine power pack with the marine gearbox, please further contact our sales.
(2) We can provide the KTA50-M1600 complete marine engine, as well as the KTA50-M1600 gneuine Cummins engine parts.
(3) Cummmins KT50 Series Marine Engine Model: KTA50-M1600, KTA50-M1800.
