Chongqing Cummins Engine Co., Ltd. (hereinafter referred to as “Chongqing Cummins” or “CCEC“) was established in 1995, located in Chongqing City. It’s a modern manufacturer 50:50 Joint Venture shared by Chongqing Machinery CO. LTD and Cummins USA. The company mainly produces N, K, M series Cummins construction engine, diesel pump engine, marine engine, generators engine, KTA19-M550 marine engine is one of the engine family members, the specifications of Cummins KTA19-M550 marine engine as follows:

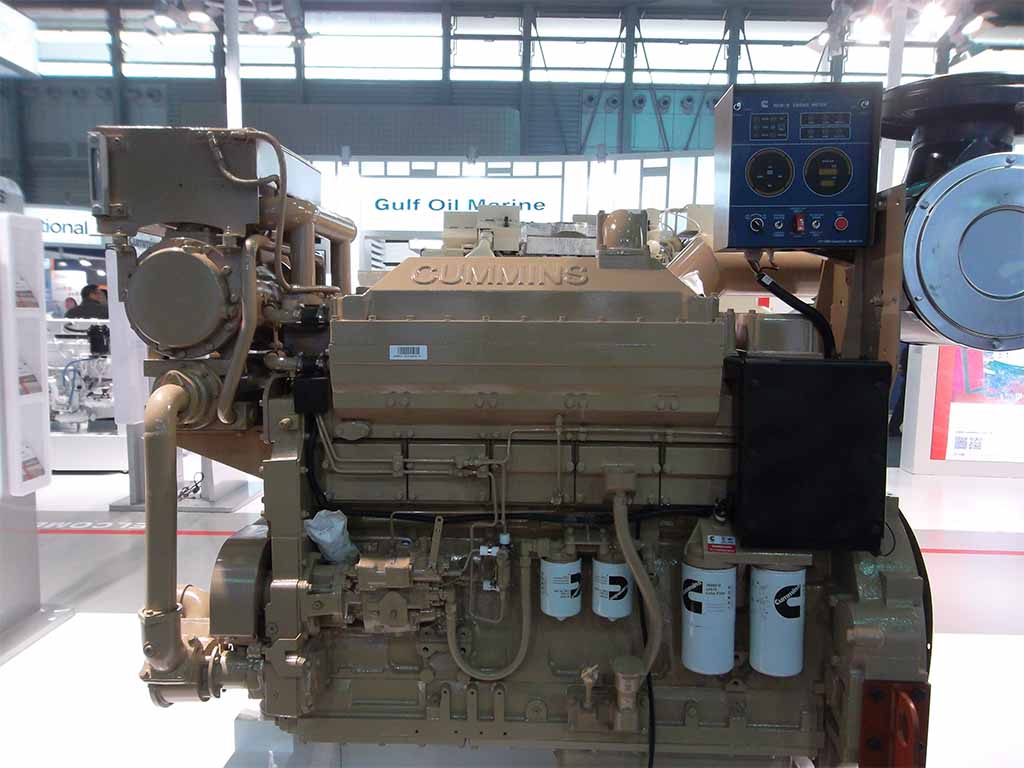

Cummins KTA19-M550 Diesel Engine for Marine
|
|
Engine Model | KTA19-M550 |
Rated Power | 410kW |
Rated Speed | 2100RPM |
Engine Type | 6 Cylinders, in Line |
Bore*Stroke(mm) | 159mm*159mm |
Displacement | 19 L |
Compression Ratio | 13.8:1 |
Peak Torque | 1950N.m @1500r/min |
Fuel Consumption | 87 L/hr |
Aspiration Type | Turbocharged & Aftercooled |
Cooling Method | Water Cooled |
Start Type | 24V, Electric Start |
Fuel System | Direct Injection Pump |
Governor Method | Mechanical Governor |
Packing Weight | 2600KG |
Dimension | 2450mm*1150mm*2000mm |
Remarks:
(1) If you need the KTA19-M550 marine engine power pack with the marine gearbox, please further contact our sales.
(2) We can provide the KTA19-M550 complete marine engine, as well as the KTA19-M550 genuine Cummins engine parts.
(3) Cummins KT19 Series Marine Engine Model: KT19-M425, KTA19-M470, KTA19-M500, KTA19-M550, KTA19-M600, KTA19-M700.
