Dongfeng Cummins Engine Co., Ltd. (hereinafter referred to as “Dongfeng Cummins” or “DCEC“) is located in Xiangyang City, Hubei Province, is the modern manufacture of heavy duty engine 50:50 Joint Venture shared by Dongfeng Automobile Limited and Cummins USA. The company mainly produce B/C/L/ISB/ISDe/ISLe/ISZ series Cummins automotive engine, construction engine, diesel pump engine, marine engine, generators engine, 6CTA8.3-M220 marine engine is one of the engine family members, the specifications of Cummins 6CTA8.3-M220 marine engine as follows:

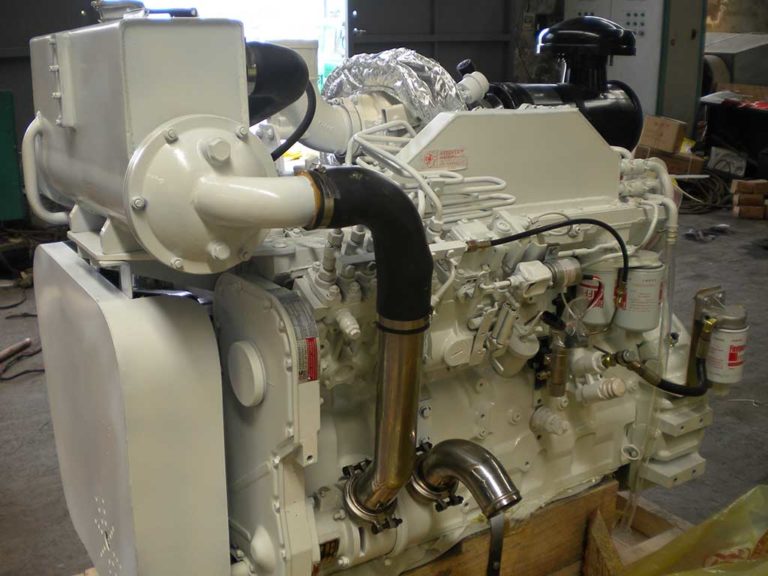

Cummins 6CTA8.3-M220 Diesel Engine for Marine
|
|
Engine Model | 6CTA8.3-M220 |
Rated Power | 163kW |
Rated Speed | 2200RPM |
Engine Type | 6 Cylinders, in Line |
Bore*Stroke(mm) | 114mm*135mm |
Displacement | 8.3 L |
Compression Ratio | 17.3:1 |
Peak Torque | 1000N.m @1500r/min |
Fuel Consumption | 44 L/hr |
Aspiration Type | Turbocharged & Intercooled |
Cooling Method | Water Cooled |
Start Type | 24V, Electric Start |
Fuel System | Direct Injection Pump |
Governor Method | Mechanical Governor |
Packing Weight | 900KG |
Dimension | 1600mm*950mm*1500mm |
Remarks:
(1) If you need the 6CTA8.3-M220 marine engine power pack with the marine gearbox, please further contact our sales.
(2) We can provide the 6CTA8.3-M220 complete marine engine, as well as the 6CTA8.3-M220 genuine Cummins engine parts.
(3) Cummins 6CT8.3 Series Marine Engine Model: 6CTA8.3-M188, 6CTA8.3-M205, 6CTA8.3-M220.
