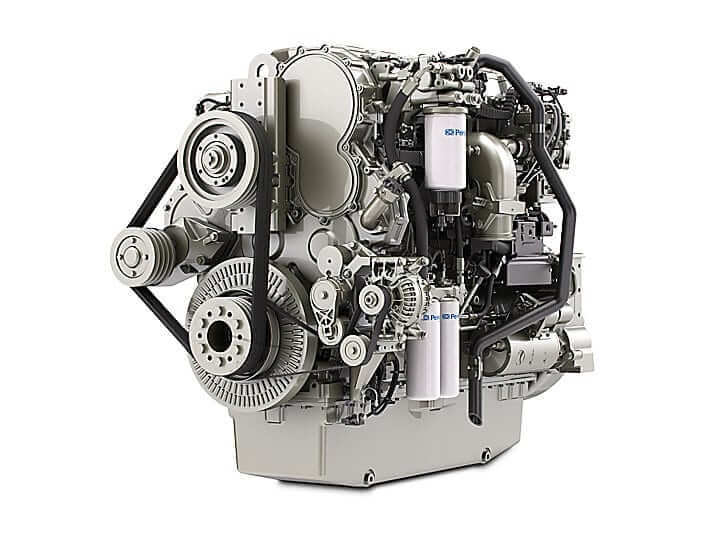

| Perkins Engine 2806C-E16TAG1/2 SERIES SPARE PARTS | ||
| A. Maintenance Spare Parts | ||
| PART NAME | PART NAME | PART NUMBER |
| AIR FILTER | 空氣濾清器 | SEV551F/4 |
| OIL FILTER | 機油格 | CH10929 |
| FUEL FILTER | 柴油格 | CH10930 |
| FUEL FILTER | 柴油格 | CH10931 |
| KIT,SERVICE | 濾清器套裝 | KRP1568 |
| GASKET ROCKER COVER | 氣缸頂墊片 | CH11353 |
| THERMOSTAT | 節溫器 | KRP1645 |
| FAN BELT | 風扇皮帶 | CH11023 |
| ALT BELT | 充電機皮帶 | CH11037 |
| B. Overhaul Spare Parts | ||
| PART NAME | PART NAME | PART NUMBER |
| REAR OIL SEAL | 前油封 | CH11379 |
| FRONT OIL SEAL | 後油封 | CH11304 |
| KIT,TOP O\HAUL | 上部修理包 | KRP1546 |
| KIT,BTM O\HAUL | 下部修理包 | KRP1547 |
| MAIN BEARING | 主軸瓦 | KRP3116/025 |
| MAIN BEARING | 主軸瓦 | KRP3116/050 |
| BIG END BEARING | 連杆瓦 | KRP3027 |
| BIG END BEARING | 連杆瓦 | KRP3012/025 |
| BIG END BEARING | 連杆瓦 | KRP3012/050 |
| CONROD BOLT | 連杆螺絲 | CH10607 |
| CONROD PIN | 連杆柱塞 | CH10203 |
| CONROD BUSH | 連杆杯士 | CV11007 |
| VALVE INLET | 進氣門 | CH11021 |
| VALVE EXHAUST | 排氣門 | CH11022 |
| VALVE GUIDE | 氣門導管 | CH10724 |
| COTTER | 氣門鎖片 | CH10019 |
| INSERT INLET | 進氣門座 | CH10731 |
| INSERT EXHAUST | 排氣門座 | CH10732 |
| VALVE SPRING(INNER) | 氣門彈弓(外)(CH10781) | CH12798 |
| VALVE SPRING(OUTER) | 氣門彈弓(內)(CH10718) | CH11489 |
| VALVE SPRING SEAT(UPPE) | 彈弓氣門上座 | CH10715 |
| VALVE SPRING SEAT(LOW) | 彈弓氣門下座 | CH10716 |
| VALVE BRIDGE ASSY | 氣門橋 | CH12831 |
| VALVE BRIDGE ASSY | 活塞總承 | KRP1720 |
| KIT, PISTON RING | 活塞環 | KRP1528 |
| LINER | 缸套(CH11020) | T400384 |
| LINER BAND | 缸套環 | CH10673 |
| LINER SEAL | 缸套密封圈 | CH10674 |
| LINER SEAL | 缸套密封圈 | CH10675 |
| LINER SEAL | 缸套密封圈 | CH10677 |
| THRUST WASHER | 止推片 | KRP3206 |
| JET | 冷卻噴油咀 | CH12019 |
| INJECTOR SLEEVE | 噴油器銅套 | CH11311 |
| INJECTOR SEAL | 噴油咀膠圈 | KRP1643 |
| ROCKER ARM ASSY | 搖臂座 | CH11165 |
| TURBOCHARGER ASSY | 增壓器總承 | R/CH10899 |
| INJECTOR | 噴油器總承 | P/CH10948 |
| WATER PUMP ASSY. | 水泵總承 | KRP1718 |
| SHAFT | 水泵軸 | CH10555 |
| LIFT PUMP | 手搖泵 | KRP1679 |
| OIL COOLER ASSY | 冷卻器總承 | CH10903 |
| CORE | 柴油冷卻器 | CH11116 |
| ALTERNATOR | 充電機 | CH11087 |
| STARTER MOTOR | 起動馬達 | CH12807 |
| BUSH, CAMSHAFT | 凸輪軸銅套 | CH11228 |
| FAN | 風扇 | CH11085 |
| WATER LEVEL SWITCH | 水箱水位制 | CV25001 |
| OIL PUMP | 機油泵 | CH10860 |
| KIT, CRANKSHAFT | 曲軸總承 | CH10651 |
| ELECTRINIC CONTROL UN | 電子調速器 | CH12800R |
| OIL RESSURE SWITCH | 油壓感應器 | KRP1559 |
| OIL RESSURE GAUDE | 壓力感應器 | KRP1560 |
| TEMPERATURE SWITCH | 水溫感應器 | KRP1557 |
| SPEED SENSOR | 轉速感應器 | KRP1561 |
| KIT,CONROD | 連杆 | CH10605 |
