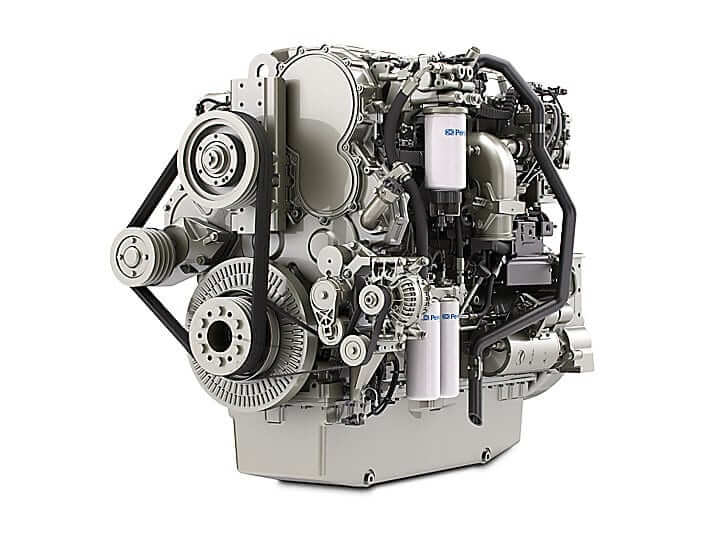

| Perkins Engine 2506C-E15TAG2 SERIES SPARE PARTS(MGBF5027) | ||
| A. Maintenance Spare Parts | ||
| PART NAME | PART NAME | PART NUMBER |
| AIR FILTER | 空氣濾清器 | SEV551F/4 |
| OIL FILTER | 機油格 | CH10929 |
| FUEL FILTER | 柴油格 | CH10930 |
| FUEL FILTER | 柴油格 | CH10931 |
| GASKET ROCKER COVER | 氣缸頂墊片 | CH11353 |
| FAN BELT | 風扇皮帶 | CH11950 |
| ALT BELT | 充電機皮帶 | CH11202 |
| B. Overhaul Spare Parts | ||
| PART NAME | PART NAME | PART NUMBER |
| REAR OIL SEAL | 前油封 | CH11379 |
| FRONT OIL SEAL | 後油封 | CH11304 |
| MAIN BEARING | 主軸瓦 | KRP3122 |
| MAIN BEARING | 主軸瓦 | KRP3116/025 |
| MAIN BEARING | 主軸瓦 | KRP3116/050 |
| BIG END BEARING | 連杆瓦 | KRP3016 |
| BIG END BEARING | 連杆瓦 | KRP3016/064 |
| BIG END BEARING | 連杆瓦 | KRP3016/127 |
| CONROD BOLT | 連杆螺絲 | CH11684 |
| VALVE INLET | 進氣門 | CH11021 |
| VALVE EXHAUST | 排氣門 | CH11022 |
| VALVE GUIDE | 氣門導管 | CH10724 |
| COTTER | 氣門鎖片 | CH10019 |
| INSERT INLET | 進氣門座 | CH10731 |
| INSERT EXHAUST | 排氣門座 | CH10732 |
| VALVE SPRING(INNER) | 氣門彈弓(外) | CH12798 |
| VALVE SPRING(OUTER) | 氣門彈弓(內 | CH11489 |
| VALVE BRIDGE ASSY | 氣門橋 | CH12831 |
| KIT, PISTON RING | 活塞環 | KRP3018 |
| LINER | 缸套 | CH11180 |
| LINER BAND | 缸套環 | CH10673 |
| LINER SEAL | 缸套密封圈 | CH10674 |
| LINER SEAL | 缸套密封圈 | CH10677 |
| LINER SEAL | 缸套密封圈 | CH11179 |
| THRUST WASHER | 止推片 | KRP3206 |
| 零件名稱(英文) | 零件名稱(中文) | 零件編號 |
| JET | 冷卻噴油咀 | CH11994 |
| INJECTOR | 噴油器總承 | R/CH11945 |
| WATER PUMP ASSY. | 水泵總承 | KRP1715 |
| LIFT PUMP | 手搖泵 | KRP1679 |
| OIL COOLER ASSY | 冷卻器總承 | CH10903 |
| ALTERNATOR | 充電機 | CH11087 |
| STARTER MOTOR | 起動馬達 | CH12807 |
| WATER LEVEL SWITCH | 水箱水位制 | CH12541 |
| OIL PUMP | 機油泵 | CH10860 |
| ELECTRINIC CONTROL UN | 電子調速器 | R/CH12895 |
| OIL RESSURE SWITCH | 油壓感應器 | KRP1699 |
| TEMPERATURE SWITCH | 溫感應器 | KRP1687 |
| TEMPERATURE SWITCH | 溫感應器 | KRP1688 |
| SPEED SENSOR | 轉速感應器 | KRP1705 |
| SPEED SENSOR | 轉速感應器 | KRP1700 |
| KIT,CONROD | 連杆 | CH11507 |
