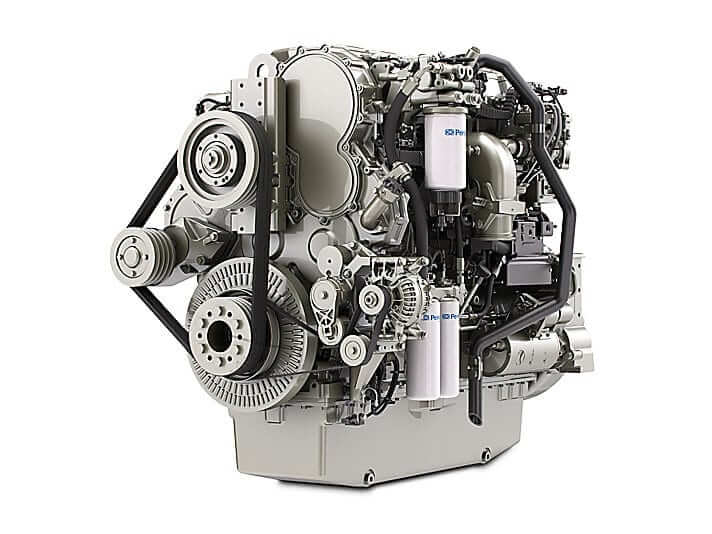

| Perkins Engine 2206C-E13TAG2 SERIES SPARE PARTS (TGBF5031) | ||
| A. Maintenance Spare Parts | ||
| PART NAME | PART NAME | PART NUMBER |
| AIR FILTER | 空氣濾清器 | CH11217 |
| OIL FILTER | 機油格 | CH10929 |
| FUEL FILTER | 柴油格 | CH10930 |
| FUEL FILTER | 柴油格 | CH10931 |
| GASKET ROCKER BOX | 搖臂室墊片 | CH12459 |
| SEAL-CYLINDER COVER | 搖臂室蓋墊片 | CH12142 |
| HEAD GASKET | 盆头垫片 | CH12454 |
| FAN BELT | 風扇皮帶 | CH12789 |
| ALT BELT | 充電機皮帶 | CH11037 |
| B. Overhaul Spare Parts | ||
| PART NAME | PART NAME | PART NUMBER |
| REAR OIL SEAL | 前油封 | CH12442 |
| FRONT OIL SEAL | 后油封 | CH12721 |
| MAIN BEARING | 主軸瓦 | KRP3120 |
| BIG END BEARING | 連杆瓦 | KRP3023 |
| CONROD BOLT | 連杆螺絲 | CH12499 |
| VALVE INLET | 進氣門 | CH12626 |
| VALVE EXHAUST | 排氣門 | CH12627 |
| VALVE GUIDE | 氣門導管 | CH12583 |
| COTTER | 氣門鎖片 | CH10019 |
| INSERT INLET | 進氣門座 | CH12581 |
| INSERT EXHAUST | 排氣門座 | CH12580 |
| VALVE SPRING(INNER) | 氣門彈弓(外) | CH12754 |
| VALVE SPRING(OUTER) | 氣門彈弓(內) | CH12475 |
| VALVE BRIDGE ASSY | 氣門橋 | CH12278 |
| VALVE BRIDGE ASSY | 活塞總承 | KRP3024 |
| KIT, PISTON RING | 活塞環 | KRP3031 |
| LINER | 缸套 | CH12489 |
| LINER SEAL | 缸套密封圈 | CH12488 |
| THRUST WASHER | 止推片 | KRP3207 |
| JET | 冷卻噴油咀 | CH12334 |
| INJECTOR | 噴油器總承 | CH12082 |
| ROCKER SHAFT | 搖臂軸 | CH12481 |
| 零件名稱(英文) | 零件名稱(中文) | 零件編號 |
| TURBOCHARGER ASSY | 增壓器總承 | CH12036 |
| WATER PUMP ASSY. | 水泵總承 | CH12887 |
| LIFT PUMP | 手搖泵 | T400130 |
| OIL COOLER ASSY | 冷卻器總承 | CH12236 |
| ALTERNATOR | 充電機 | CH11087 |
| STARTER MOTOR | 起動馬達 | CH12807 |
| WATER LEVEL SWITCH | 水箱水位制 | CH12541 |
| OIL PUMP | 機油泵 | CH12314 |
| ELECTRINIC CONTROL UN | 電子調速器 | R/CH12895 |
| OIL RESSURE SWITCH | 油壓感應器 | KRP1699 |
| TEMPERATURE SWITCH | 水溫感應器 | KRP1688 |
| TEMPERATURE SWITCH | 水溫感應器 | KRP1687 |
| SPEED SENSOR | 轉速感應器 | KRP1705 |
| SPEED SENSOR | 轉速感應器 | KRP1702 |
| KIT,CONROD | 連杆 | CH12635 |
