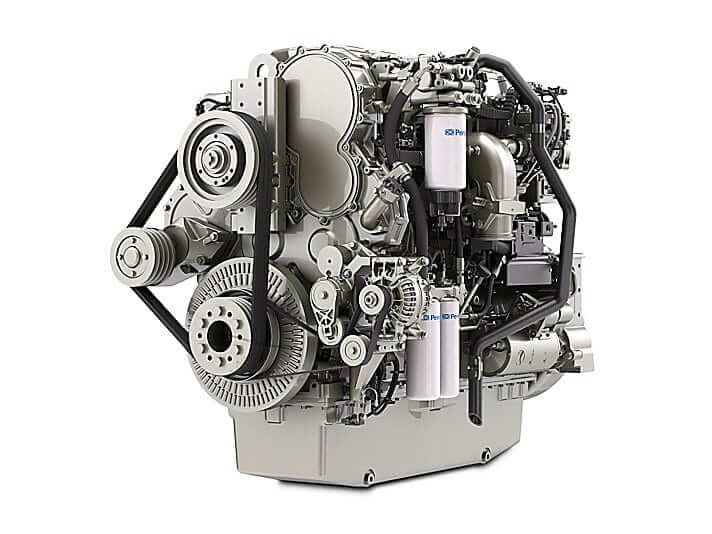

| Perkins 1506A-E88TAG3 Engine Spare Parts | |||
| ITEM | PART NAME | PART NUMBER | QTY |
| 1 | OIL FILTER | 4587260 | 1 |
| 2 | MAIN AIR FILTER | 4881643 | 1 |
| 3 | FUEL FILTER | 4587258 | 1 |
| 4 | FUEL FILTER | 4587259 | 1 |
| 5 | BELT | 4590677 | 2 |
| 6 | SEAL - VALVE STEM | T400753 | 12 |
| 7 | SEAL - VALVE STEM | CH11486 | 12 |
| 8 | GASKET - CYLINDER HEAD | T400764 | 1 |
| 9 | SEAL - FRONT END OIL | T400570 | 1 |
| 10 | SEAL - REAR END OIL | T400569 | 1 |
| 11 | GASKET - CYL HEAD COVER | T400593 | 1 |
| 12 | GASKET - CYL HEAD COVER | T400595 | 1 |
| 13 | GASKET - TIMING CASE COVER | T400601 | 1 |
| 14 | GASKET - OIL FILTER HEAD | T400622 | 1 |
| 15 | GASKET - BREATHER | T400578 | 1 |
| 16 | GASKET - SUMP | T400612 | 1 |
| 17 | GASKET - EXHAUST MANIFOLD | T400816 | 6 |
| 18 | SEAL - WATER PUMP | T400804 | 1 |
| 19 | SEAL - THERMOSTAT ASSEMBLY | CH10056 | 1 |
| 20 | GASKET - TURBOCHARGER | T400948 | 1 |
| 21 | GASKET - OIL COOLER | T400627 | 1 |
| 22 | INTAKE VALVE | T400744 | 12 |
| 23 | EXHAUST VALVE | T400745 | 12 |
| 24 | VALVE SEAT INSERT | T400755 | 12 |
| 25 | VALVE SEAT INSERT | T400757 | 12 |
| 26 | VALVE SLEEVE | T400756 | 6 |
| 27 | VALVE GUIDE | T400742 | 12 |
| 28 | VALVE GUIDE | T400743 | 12 |
| 29 | PISTON CROWN | T400775 | 6 |
| 30 | PISTON | T400774 | 6 |
| 31 | PISTON RING KIT | T400935 | 6 |
| 32 | GUDGEON PIN | T400771 | 6 |
| 33 | RETAINING RING | CH11739 | 12 |
| 34 | LINER KIT | T400895 | 6 |
| 35 | SEAL - LINER | T400902 | 6 |
| 36 | BIG END BEARING KIT | T400936 | 6 |
| 37 | MAIN BEARING KIT | T400519 | 1 |
| 38 | THRUST WASHER | T400520 | 2 |
| 39 | INJECTOR | T400726 | 6 |
| 40 | SEAL - INJECTOR | T400940 | 12 |
| 41 | SEAL - INJECTOR | T400942 | 6 |
| 42 | ENGINE CONTROL MODULE | R/CH12895 | 1 |
| 43 | STARTER MOTOR | T400304 | 1 |
| 44 | WATER PUMP | T400803 | 1 |
| 45 | THERMOSTAT | CH11620 | 1 |
| 46 | OIL PUMP | T400847 | 1 |
| 47 | ALTERNATOR | CH11087 | 1 |
| 48 | SPEED SENSOR | T400882 | 1 |
| 49 | TEMPERATURE SENSOR | KRP1687 | 1 |
| 50 | TEMPERATURE SENSOR | KRP1688 | 1 |
| 51 | OIL PRESSURE SENSOR | KRP1699 | 1 |
| 52 | AIR TEMPERATURE SENSOR KIT | T400884 | 1 |
| 53 | AIR PRESSURE SENSOR KIT | KRP1693 | 1 |
| 54 | COOLANT LEVEL SWITCH | T400972 | 1 |
| 55 | FAN | T400970 | 1 |
| 56 | RADIATOR | T400967 | 1 |
| 57 | PUSHROD | T400791 | 12 |
| 58 | TAPPET | T400792 | 12 |
| 59 | FUEL INJECTION PUMP | T400727 | 1 |
| 60 | CRANKSHAFT ASSEMBLY | T400517 | 1 |
| 61 | TURBOCHARGER | T400950 | 1 |
| 62 | OIL COOLER | T400628 | 1 |
| 63 | WIRING HARNESS | T400705 | 1 |
| 64 | PRIMING PUMP | CH10439 | 1 |
| 65 | PISTON COOLING JET | T400772 | 6 |
